DFA 127 Door Closed or Open Signal
The latest version of software now has the ability to send a 24vdc signal when the door is either open or closed. This could be utilised for alarms, interlock or BMS requirements.

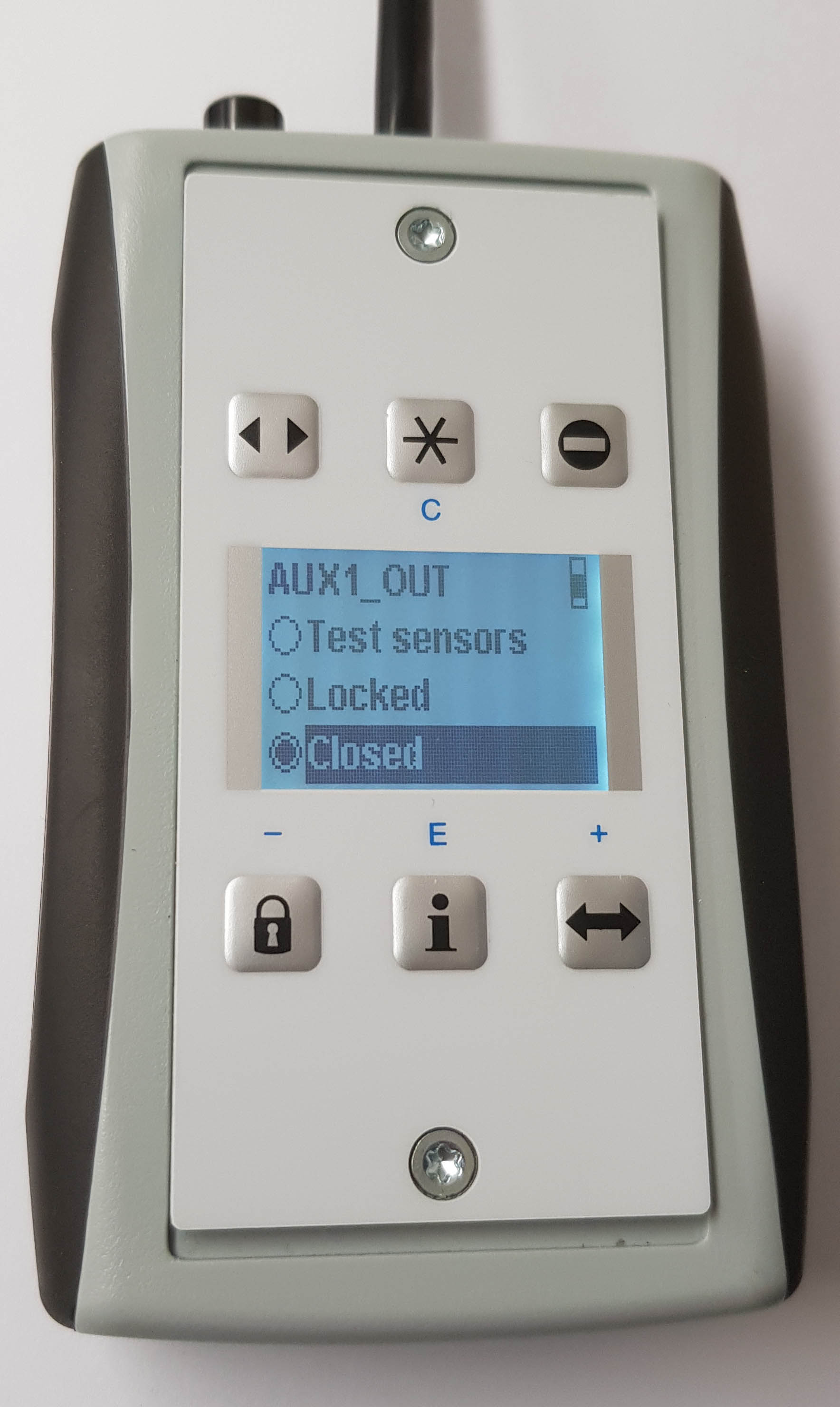

It utilises the aux 1 out programmable input which can be programmed to door closed.
Across terminals 9 &13 24vdc is given when the door is in the closed position
Across terminals 9 &14 24vdc is given when the door is in an open position
