record DFA 127 – swing drive operator

The record DFA 127 is a universal drive system for the automation of swing doors. It is characterized by sophisticated technology, compact design and especially record’s legendary smoothness of operation. Its exceptional versatility makes it suitable for a broad range of applications and widely differing requirements.

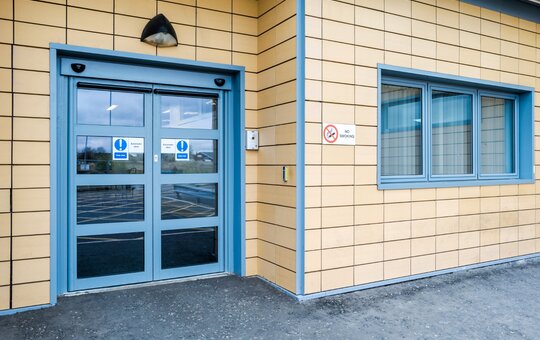

  • DFA 127 Automatic swing door operator with Stainless steel cover

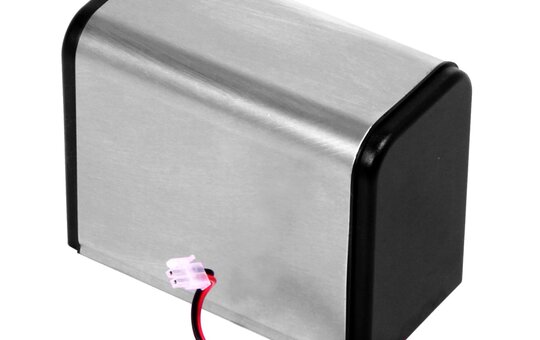

  • DFA 127 Swing door Battery backup system

    DFA 127 Swing door Battery backup system

  • swing door

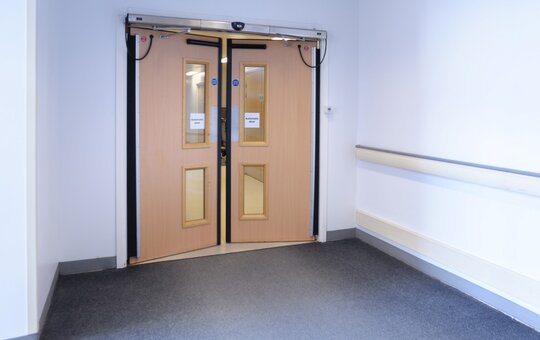

    Swing door installed at Horizon House suite of offices in Aberdeen.

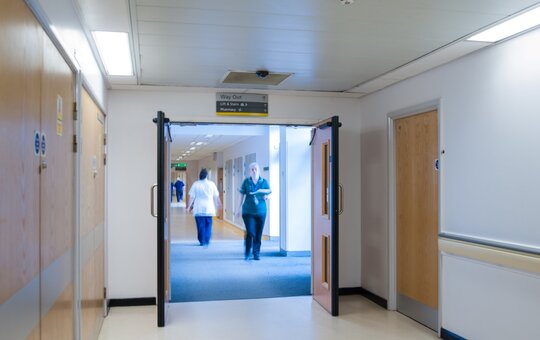

  • DFA 127 Swing doors in new office building in Hamilton, Glasgow

The DFA 127's universal qualities are mainly due to its electro-mechanical construction, and partly due to its modular design. When the door drive motor operates, it simultaneously tensions a spring integrated in the drive housing. The shutting movement uses energy stored in the spring, which, depending on requirements, is also motor-assisted. Even without motor assistance, thanks to ingenious mechanics, optimum power deployment is achieved in the entire door swing area. This is necessary to move the door reliably to its end position against draft resistance, for example, and also complies with the norms and standards of current safety requirements.

The record DFA 127 is available to operate doors in sizes EN4 to EN6. The different spring forces required can be quickly and precisely adjusted on the spot using the special adjustment screw.

This model can be adapted easily to provide additional functionality with no loss of integrity to suit specific requirements such as slower opening, fire resistance, inverse opening in case of power failure and other variations.

See Above tab for Technical Data.

Features:

  • DIN 18 650-compliant technology, approved worldwide
  • adjustable spring force gives it great versatility
  • adjustable to accommodate customer-specific settings
  • optimum power deployment in full swing area
  • the opening stop is integrated into the door drive system (no hazard for pedestrians to stumble over)
  • no emergency power supply required to open the door
  • the electromagnetic parking brake means additional electrical opening devices on interior doors can be dispensed with capable of complex functions
  • practically silent operation

Variations:

  • double swing doors with or without master /slave operation
  • power saving mode: adjustable opening of one or both door panels (stretcher opening)
  • integrated sequential closing control for double-leaf fire door applications
  • interlock function for two single doors installed consecutively
  • direction-oriented opening for oncoming traffic in corridors
  • opening or closing without current
  • approved and certified fire protection
  • gerontology technology for slower opening and barrier-free access
  • Available with an optional "built in locking motor"
  • battery backup for power fail protection

Especially suitable for use in:

  • retail outlets
  • airports
  • administration and office buildings
  • restaurants and hotels
  • hospitals
  • residential and care homes
  • escape route openings
  • areas requiring heat and smoke to be vented

Accessories:

ITEM



CODE



DFA 127 CAN Isolator - Required for a Pair

REC-127808247

BDE-D Switch and Programmer

REC-903808996

Continuous Cover - Stainless - 3mtr Length

REC-127109450

Continuous Cover - Aluminium - Per Mtr

REC-127108948

50mm Ext Spindle - Lever adaptor

REC-127808212

65mm Ext Spindle - Lever adaptor

REC-127808218

80mm Ext Spindle - Lever adaptor

REC-127808213

Optex OA-Edge 900mm

AUT-SEN-OAEDGE 900

Dummy Transom closer

AUT-DUM-TC9900

HR50 - Uni-Directional - (Pivot Point)

GLB-206003

HR50 - Bi-Directional

GLB-206004

4” Press Pad - Hardwired

GLB-257002

4” Press Pad - Larco Wireless

GLB-257004

BDI-M - Allows fitting of key switch

REC-127808232

3 Position key switch (Auto, Closed, Open)

GLB-508101

Morning Entry Keyswitch - A126 Key

GLB-508001

Slim Surface Housing (Stainless Steel)

GLB-508103

Slim Press Pad - Hardwired

GLB-257001

Slim Press Pad - Larco Wireless

GLB-257016

Larco - Receiver

GLB-257006

Larco - Transmitter & Battery

GLB-257101

Press Button Remote Fob

GLB-257102

Toilet Door Locking System

GLB-307001

FP200 Roller Fingerguard

SAA GLB-206604

Eagle 1 Activation sensor

AUT-SEN-EAGLE1

Hard Stop

REC-127808234
